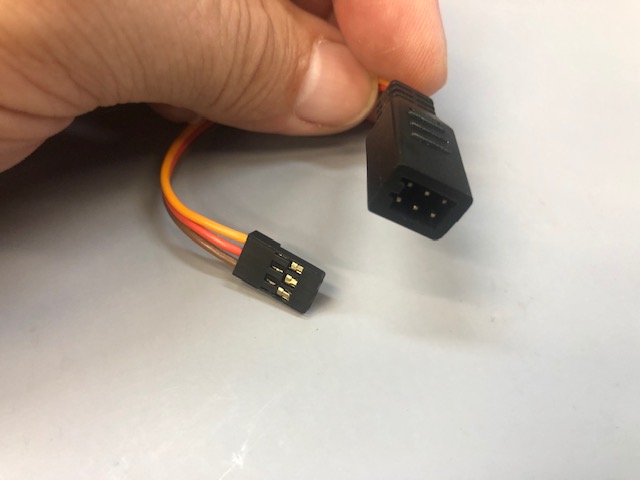

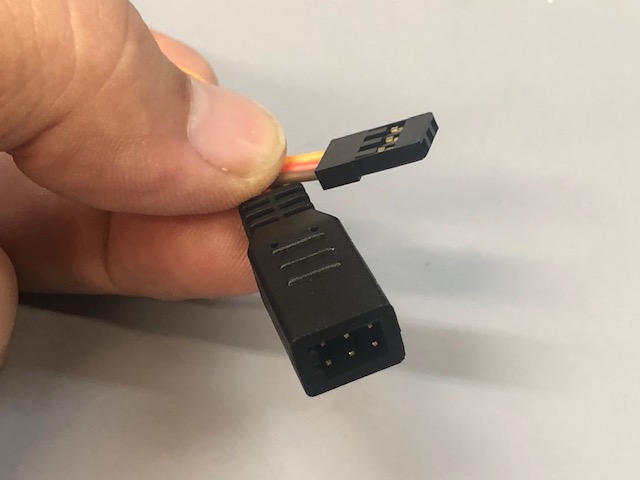

This Y-harness electrically joins two-signal and two-power leads into one DuPont lead via high strand count 20AWG wire. All wires come together forming the legs of a 'Y' and thus, current/signal flow is bi-directional.
Practical use-cases of 1-into-2, or, 2-into-1 flow (bi-directional)
- The primary use of a Y-harness is joining a capacitor with a servo whenever an extension's longer than 30". Review the information within the Glitch Buster product description to learn more. This benefits the servo on a long extension like a spotter helping a weightlifter at a bench press - during a moment of great need!
- Secondary Y-harness use is when adding a capacitor to a receiver channel because all ports are in use.
- Tertiary use is similar, but for adding a battery lead to a receiver when all the servo channels are in use.

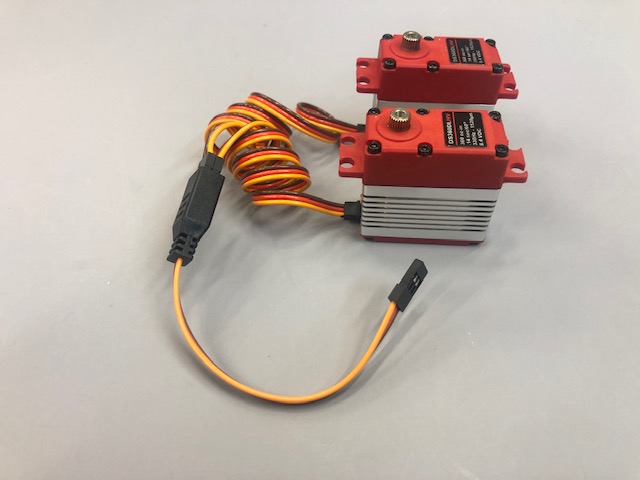

- What a Y-harness isn't for, is joining two servos to be controlled by one channel of the receiver.
Thing is, No.4 is what everyone first thinks of when mentioning a Y-harness. But as a general rule, you actually should *never* join two servos together with a Y-harness. But because rules are meant to be broken, if you want to learn when you can get away with it, then review this article; Practical uses of a Y-harness
Finally, please note; a Y-harness is almost never a good idea with high current draw servos. Learn more:
